Hey there! As a supplier of rigid pipe supports, I've seen firsthand the ins and outs of using these supports for large - diameter pipes. There are some real challenges that come with it, and I'm here to break them down for you.
1. Structural Load - Bearing Challenges
One of the most obvious challenges when using rigid pipe supports for large - diameter pipes is dealing with the massive structural loads. Large - diameter pipes are heavy, especially when they're filled with fluids or gases. These pipes can weigh several tons, and the rigid pipe support has to be able to handle that weight without failing.
For instance, when you're looking at industrial applications such as oil and gas pipelines or large - scale water distribution systems, the pipes can reach diameters of several feet. The sheer weight of these pipes means that the rigid support needs to be incredibly sturdy. If the support isn't designed to handle the load, it can lead to sagging of the pipes. Sagging not only affects the flow of the fluid or gas inside the pipe but can also cause stress concentrations at the support points, which may eventually lead to pipe failure.
To address this issue, we've developed some top - notch solutions. Take our T - Type Pipe Support with Wear Pad. This support is engineered to offer robust load - bearing capabilities. The wear pad helps distribute the load more evenly, reducing the pressure on any single point of the support and the pipe. It's a great option for those large - diameter pipes where evenly distributed load is crucial.
2. Thermal Expansion and Contraction
Large - diameter pipes are highly susceptible to thermal expansion and contraction. When the temperature of the fluid or gas inside the pipe changes, the pipe will expand or contract. In the case of large - diameter pipes, these dimensional changes can be quite significant.
Rigid pipe supports, by their very nature, are not very flexible. They're designed to hold the pipe in a fixed position. So, when the pipe expands or contracts due to temperature variations, it creates a lot of stress on the support and the pipe itself. This stress can cause the support to crack or break, and in severe cases, it can even lead to pipe deformation.

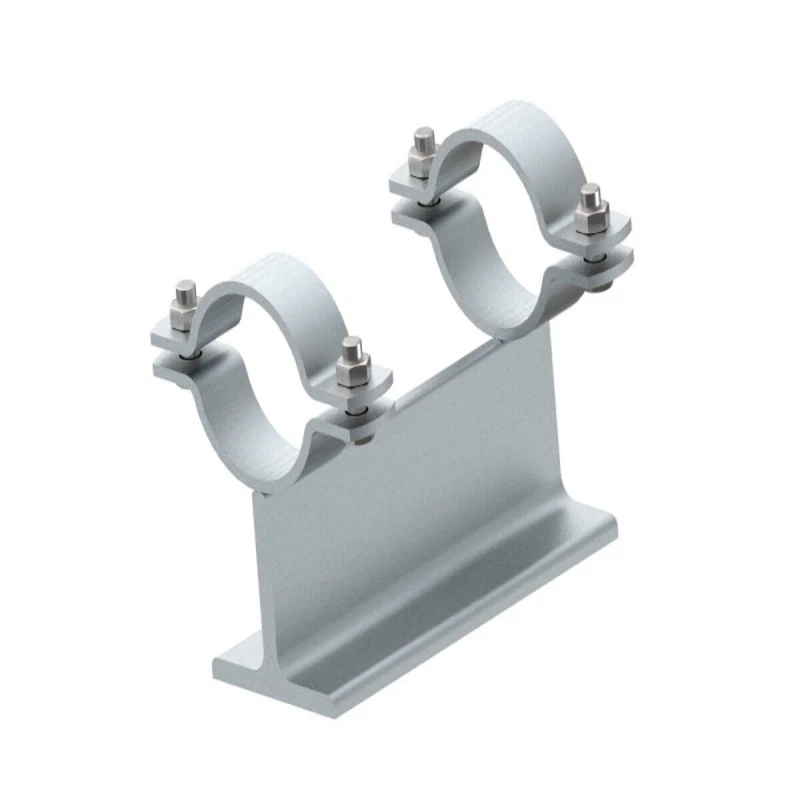

Let's say you have a large - diameter steam pipe. Steam operates at high temperatures, and when the steam is flowing through the pipe, the pipe will expand. If the rigid support restricts this expansion, the stress build - up can be catastrophic. To mitigate this problem, we offer T - Type Pipe Supports with Clamp. These supports are designed with a certain degree of flexibility in the clamping mechanism. This allows for some movement of the pipe during thermal expansion and contraction, reducing the stress on both the support and the pipe.
3. Installation Complexity
Installing rigid pipe supports for large - diameter pipes is no walk in the park. These pipes are huge, and getting the support in the right position and properly secured can be a real challenge.
First of all, the large size of the pipes makes it difficult to maneuver them into the correct position for support installation. You need heavy - duty equipment like cranes to lift the pipes, and even then, getting the alignment just right can be tricky. Any misalignment during installation can lead to uneven loading on the support, which can compromise its performance over time.
Secondly, large - diameter pipes often have specific installation requirements based on the type of fluid or gas they're carrying, and the surrounding environment. For example, if the pipe is in a corrosive environment, the support needs to be made of a corrosion - resistant material and installed in a way that minimizes the risk of corrosion.
Our Pipe Saddle Support is designed with installation in mind. It has a unique shape that conforms well to the large - diameter pipes, making it easier to position and install. The saddle design also provides better support and stability once it's in place.
4. Vibration and Noise
Large - diameter pipes are prone to vibration, especially when the fluid or gas inside them is flowing at high speeds. This vibration can be a real headache for several reasons.
For one, it can cause the rigid pipe support to loosen over time. The constant shaking can make the bolts and fasteners come loose, which can lead to the support losing its effectiveness. Additionally, the vibration can generate a lot of noise. In industrial settings, this noise can be a significant nuisance and may even violate noise regulations.
To combat this, we've incorporated vibration - damping features into some of our rigid pipe supports. These features help absorb the vibration energy, reducing the amount of shaking and noise. By using our high - quality supports, you can ensure that your large - diameter pipes operate quietly and with minimal vibration - related issues.
5. Maintenance and Inspection
Maintaining and inspecting rigid pipe supports for large - diameter pipes is a time - consuming and costly process. These pipes are often located in hard - to - reach areas, such as underground or on high - rise structures.
Inspecting the supports for signs of wear, damage, or corrosion requires specialized equipment and trained personnel. And if any issues are found, the repair or replacement process can be quite complex. For large - diameter pipes, the supports are also large and heavy, which makes it difficult to remove and replace them.
However, our products are designed with maintenance in mind. We use high - quality materials that are resistant to wear and corrosion, which means less frequent maintenance. And our support designs make it easier to access the critical components for inspection and repair.
Why Choose Us
Despite all these challenges, we're confident in our ability to provide the best rigid pipe support solutions for your large - diameter pipes. Our products are engineered to address each of these challenges head - on. We've invested a lot of time and resources in research and development to come up with innovative designs that offer superior performance.
If you're in the market for rigid pipe supports for your large - diameter pipes, don't hesitate to reach out. We can work with you to understand your specific requirements and recommend the best support solution for your project. Whether it's dealing with heavy loads, thermal expansion, or vibration, we've got you covered. Contact us today to start a conversation about your pipe support needs and let's find the perfect solution together.
