Pipe clamps are essential components in various industries, providing support, stability, and alignment for pipes. As a leading supplier of pipe clamps, I understand the importance of offering a diverse range of high-quality products to meet the unique needs of our customers. In this blog post, I will explore the different types of pipe clamps available in the market, their features, and applications.
1. U - Type Pipe Clamps

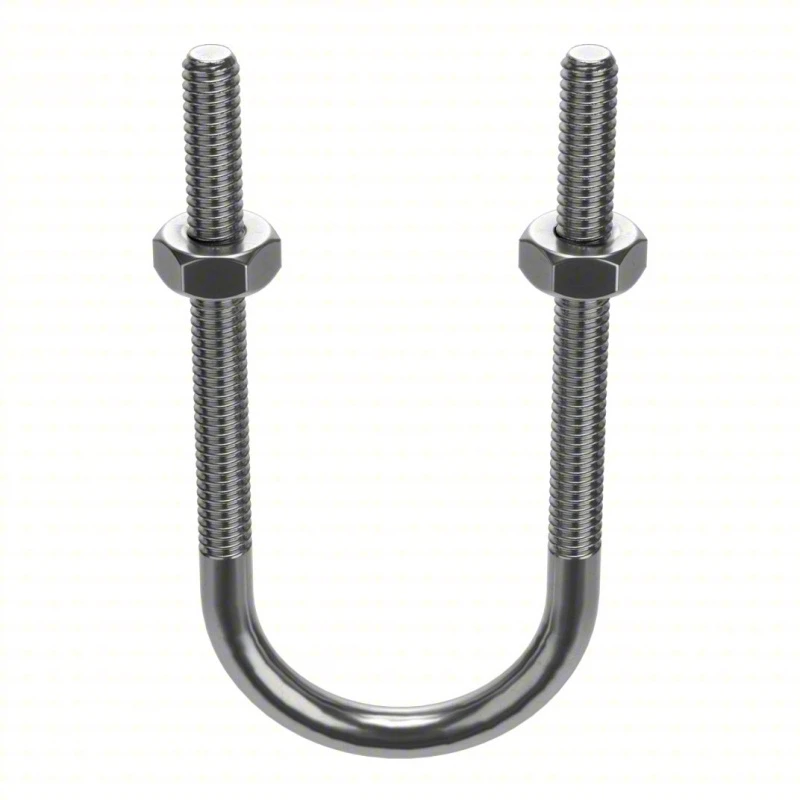

U - type pipe clamps are one of the most commonly used types of pipe clamps. They are named for their U - shaped design, which allows them to fit around pipes snugly. These clamps typically consist of a U - shaped bolt and two nuts. The U - shaped bolt is placed around the pipe, and the nuts are tightened to secure the clamp in place.
Features:
- Versatility: U - type pipe clamps can be used with pipes of different diameters and materials, making them suitable for a wide range of applications.
- Easy Installation: They are relatively easy to install, requiring only basic tools. This makes them a popular choice for both professional installers and DIY enthusiasts.
- Strong Holding Power: The design of the U - type bolt provides a strong grip on the pipe, ensuring that it remains securely in place even under high pressure or vibration.
Applications:
U - type pipe clamps are widely used in plumbing, HVAC (Heating, Ventilation, and Air Conditioning), and industrial piping systems. They are used to support pipes in walls, ceilings, and floors, as well as to secure pipes to equipment and structures. You can find more information about U - Type Bolt on our website U-Type Bolt.
2. Split - Ring Pipe Clamps
Split - ring pipe clamps are another popular type of pipe clamp. As the name suggests, these clamps are made up of two half - rings that are joined together to form a complete ring around the pipe. The two halves are usually held together by bolts or screws.
Features:
- Adjustable: Split - ring pipe clamps can be easily adjusted to fit different pipe diameters. This makes them a flexible option for applications where the pipe size may vary.
- Good for Large - Diameter Pipes: They are particularly suitable for large - diameter pipes, as they provide a more even distribution of pressure around the pipe compared to some other types of clamps.
- Easy Maintenance: If a pipe needs to be removed or replaced, split - ring pipe clamps can be quickly disassembled and reassembled, reducing downtime.
Applications:
These clamps are commonly used in industrial settings, such as oil and gas refineries, chemical plants, and power generation facilities. They are also used in large - scale plumbing projects where large - diameter pipes are involved.
3. Single - Bolt Pipe Clamps
Single - bolt pipe clamps are simple and cost - effective solutions for securing pipes. As the name implies, they use a single bolt to tighten the clamp around the pipe.
Features:
- Compact Design: Single - bolt pipe clamps have a relatively small and compact design, which makes them suitable for applications where space is limited.
- Quick Installation: They can be installed quickly, as only one bolt needs to be tightened. This can save time and labor costs during installation.
- Light - Duty Applications: While they are not as strong as some other types of clamps, single - bolt pipe clamps are sufficient for light - duty applications where the pipe is not subject to high pressure or heavy loads.
Applications:
Single - bolt pipe clamps are often used in residential plumbing, small - scale HVAC systems, and in some light - industrial applications where the pipes are relatively small and the loads are minimal.
4. Double - Bolt Pipe Clamps
Double - bolt pipe clamps offer more strength and stability compared to single - bolt pipe clamps. They use two bolts to secure the clamp around the pipe, providing a more even distribution of force.
Features:
- Increased Holding Power: The use of two bolts increases the clamping force, making double - bolt pipe clamps suitable for medium - to heavy - duty applications.
- Better Alignment: They help to ensure that the pipe is properly aligned, which is important for the efficient operation of the piping system.
- Durability: Double - bolt pipe clamps are generally more durable than single - bolt clamps, as they can withstand higher levels of stress and vibration.
Applications:
These clamps are commonly used in commercial plumbing, industrial piping systems, and in some automotive applications. They are suitable for pipes that are subject to moderate to high pressure and loads.
5. Pipe Lugs
Pipe lugs are a type of pipe clamp that is used to provide a secure attachment point for pipes. They are typically welded or bolted to the pipe and then used to connect the pipe to a support structure or another pipe.
Features:
- Customizable: Pipe lugs can be customized to fit specific pipe sizes and applications. They can be designed with different shapes, sizes, and mounting options to meet the unique needs of the customer.
- High - Strength Connection: They provide a strong and reliable connection between the pipe and the support structure, ensuring the stability of the piping system.
- Suitable for Special Applications: Pipe lugs are often used in applications where the pipe needs to be supported at a specific angle or where a more complex connection is required.
Applications:
Pipe lugs are commonly used in industrial piping systems, such as in the oil and gas industry, where pipes need to be supported in challenging environments. For more details about Pipe Lugs, visit Pipe Lugs.
6. Sight Glass Pipe Clamps
Sight glass pipe clamps are designed to hold sight glasses in place within a piping system. Sight glasses are used to visually inspect the flow of fluids or gases within a pipe.
Features:
- Precision Fit: These clamps are designed to provide a precise fit for sight glasses, ensuring that they are securely held in place and that there are no leaks.
- Transparency Support: They support the sight glass while allowing for clear visibility of the fluid or gas inside the pipe.
- Corrosion Resistance: Many sight glass pipe clamps are made from materials that are resistant to corrosion, which is important for applications where the pipe is exposed to harsh chemicals or environments.
Applications:
Sight glass pipe clamps are commonly used in chemical processing plants, food and beverage industries, and in some pharmaceutical applications where visual inspection of the fluid flow is necessary. You can find more information about Sight Glass on our website Sight Glass.
Conclusion
As a pipe clamps supplier, we offer a comprehensive range of pipe clamps to meet the diverse needs of our customers. Whether you are working on a small residential plumbing project or a large - scale industrial piping system, we have the right pipe clamp for you. Our products are made from high - quality materials and are designed to provide reliable performance and long - term durability.
If you are in the market for pipe clamps or have any questions about our products, please do not hesitate to contact us. Our team of experts is ready to assist you in selecting the most suitable pipe clamps for your application and to provide you with professional advice and support. We look forward to the opportunity to work with you and to help you find the perfect pipe clamping solutions for your projects.
